This was rather unexpected, but this auction for a loaded Macintosh Plus had shown up, and it was shipping local, and very cheap for what it was. It included the larger keyboard, original mouse, and an external 20MB hard disk.
Sadly, the hard disk is dead. And not like dead dead, but dead dead dead! After I freed the disk from the external enclosure, and tried to power it on, stand alone, the PSU refused to start as the disk has a hard short in the board somewhere. And I can’t say that I’m all that surprised that a hard disk from 1989 is broken. I’m more surprised that someone was using this in 1989 and didn’t take the plunge and upgrade the machine to the full 4Mb of ram.
Anyways I have this chunk of plastic and glass on a desk, but I can’t do a thing with it. I’ve heard of various SCSI emulators out there, and decided to go with a bluescsi v1 with a DB25 interface as they are generally cheaper, and the Macintosh Plus isn’t exactly all that fast so the effort of the v2 is mostly lost.
Documentation on the bluescsi is scant, but it seems that a diode needs to be soldered onto the Macintosh Plus motherboard to enable bus power, so you don’t need an external USB power source. I’m a bit worried about opening up this thing as I’ms suspecting the plastics are a log weaker than they look, so I opted for just using a USB cable to power the device.
Anyways let me cut to the chase, I have an 8Gb Micro SD card that I formatted ExFAT (the documentation says Fat32 will work, but I found it might work once, but it’ll definitely never work after a reboot), with a single file emulating a 100Mb hard disk (Luxurious!). I named the file simply ‘HD10_512.hda’ which specifies it’s a hard disk, SCSI ID 1, target 0, 512 bytes/sector and it’s a ‘hda’ image. It’s what the Bluescsi want’s so don’t fight it!
To prepare the virtual hard disk, I used Cockatrice III, since the Macintosh Quadra 800 emulation includes SCSI, which let me create a raw disk image, partition it, and format it under MacOS 8.1. The real trick was installing the operating system.
I first tried MacOS 7.0.1, but it would boot up greeting me with the error that needs more than 1Mb of ram. I tried installing a MacOS 6.0.8 manually, but it crashed saying the system folder was corrupt, and then it just went empty disk mac on further boots.
I’m not sure what the problem was, it’s possible it was the filesystem on the card, or some other issued with the Macintosh, I have no idea.
So I broke down and ordered a pre-installed diskette with MacOS 6.08.
I booted off the diskette, and amazingly the floppy drive worked! And in about a minute I had booted up, and it saw the hard disk! I dragged the System folder over the hard disk, and rebooted, and yeah it booted right up!
Obviously, the next step will be to get a proper screwdriver to open this thing, figure out how to discharge the CRT so I don’t kill myself, and add some additional RAM. I know it’ll be slow but I do want to see MacMiNT run on this thing! Maybe I’ll find/order the needed diode and make the DB25 bus powered eliminating one cable.
A long long long time ago I did own a Macintosh Plus, with 4Mb of RAM, although I mostly used it as a terminal, since it powered up quickly (it was the mid 90s!) and doesn’t take up that much space, so maybe I can slave it to an ESP32?
I had been using some generic 8GB microSD card on this, and while it seemed mostly fine on the Macintosh Plus, I had since managed to score a Performa 6400. I had been using this Kingston generic 8GB card, and it had frequent timeouts writing/reading on the Performa. As a matter of fact if the SD card was plugged in at powerup with an ISO image it would crash the Mac.
Kingston SDC10/8GB 015FCT C08G… no good!
I scored this SanDisk Extreme 32GB for Â£15. A bit pricy but it turns out totally worth it!
Â£15 SanDisk Extreme!
Not only does the Performa not crash with an ISO image but it’s pretty darn quick! Well worth the purchase as all my weird issues seemingly just disappear!
Much like the ZX Spectrum the Sinclair QL was a machine largely unknown to me growing up in Canada, then moving to the Miami area as a teenager. While the ZX 80/81 were pioneers in low end home computers barely able to do anything the ZX Spectrum with it’s 80kb of RAM (48k usable, as half the 64kb was defective), the QL announced in the start of 1984 was announced to the world as a very serious business machine. No gaming around to be found here!
While the IBM PC had been released in 1981 with it’s 16bit Intel 8088 processor utilizing a much slower & cheaper 8bit bus, the QL went one step further utilizing the Motorola 68008, a hybrid 16bit processor with 32bit registers, also using an external 8bit bus. However, being always on the cheap sifde, the QL only offered a single expansion slot, unlike the IBM PC. Also it eschewed floppy disks in favour of it’s endless loop ‘micro drive’ cassettes. Every corner that could be cut was, and sadly the resulted in a machine that just wasn’t ready as one has to wonder if the word of the Macintosh launch the following week was out, and Clive knew that it was either announce it now, or be a meetoo going forward. For better or worse he launched.
On paper it sounds fantastic, 128kb of ram, 32bit capable processor, and 2 drives all for Â£399! The IBM PC was an eye watering Â£3,325 by comparison, while the similarly spec’d Macintosh was Â£2,698! Indeed the QL stood for Quantum Leap, as the jump from 8bit to 32bit home computing was going to be phenomenal.
But how could it all go so wrong? Within a year the price had been slashed to Â£199, and stores were said to be further marking them down to a mere Â£99 the year afterwards. How could a seemingly on par machine fail so badly? The 128k Macintosh also was limited to a paultry 128kb on it’s motherboard, while the more expensive, and expandable IBM PC/XT maxed out at infamous 640kb, and it supported up to two floppy drives, and 2 hard disks although the IBM AT would be announced later that year, and it could go well beyond 640Kb, but the lack of protected mode operating systems & software would hinder the platform for quite some time.
If the trades are to be believed it was a combination of announcing too early, and failing to deliver burnt people on the QL. Additionally the ZX Spectrum had been busy wining apps at the time (games), but Sinclair wanted so much to be a serious company, not the man who brought you jet-set “fucking” willy. Sound and video capabilities of the QL were no match for the Spectrum, just weren’t there, and also missing was the incredibly cheap European storage of choice the audio casette. Many people were also dismayed that the operating system was much larger than expected and it needed to occupy both internal ROM sockets, and the cartridge port. And of course, the microdrives themselves were seen as easy to corrupt, stretch and tear. Not the kind of thing someone in business wants to hear. The ironic thing about the QL was that in my opinion it was too cheap. The PC/XT offered plenty of expansion at the base price (albeit a high one), and Apple also quickly added a much more realistic 512kb model Macintosh. The QL never got a ‘big brother’, basically condemning it at launch as nothing more but a toy. Which is a shame.
The operating system, burnt into ROM feels kind of 8bit as it has a basic interpreter built in, and it’ll open several hard coded windows in which you are expected to interact with. However, it feels more like a minicomputer with input on the bottom, running lists on the left, and output on the right. Indeed, it can feel outright baffling. And certainly nothing like an 8bit machine, or like the later home 32bit machines like the Amiga, or Mac. Even the TOS based Atari ST felt more ready for the world with its GEM burned into ROM.
Building my dream system
Despite all of these downsides, I was still intrigued by the machine, and I have to admit I really love the look of it. When I’d first read Neuromancer around the time of the video game, and this is what I’d imagined a cyberdeck to look like. While I was wasting my youth with an 8bit machine I wanted to experience this seemingly parallel universe where affordable 32bit micros were a thing.
Since I’ve heard of the machine, I’ve been trying to get one. Surprisingly for such an unloved machine they are incredibly hard to find, and they do go for quite a bit of money. However, thanks to making contacts on the QL User’s forum, I had managed to get my hands on one, so I could start my journey. I sent it off to RudeDog Retros, luckily located across the bridge from where I’m staying and within a week. I was able to get back a working system. I also had managed to get a tetroid ram expansion/CF card addon as well for my QL bringing it up to 880kb of RAM, and an 8MB CF card, making the machine a top of the line experience. Although the card was given to me with known issues, for the most part it worked, except when it didn’t, and it was always the same, bad ram at the 128kb boundary. Which is a shame, having mass storage certainly gets around the microdrives, but 128kb of ram just isn’t enough when factoring in mass storage.
Much like other 68000 based machines, the Sinclair QL is no stranger to hardware modifications. I ordered a 512kb memory expansion unit (Sinclair QL 512KB Internal Memory Expansion from *der_englaender*) to fill in the 128k gap from the Tetroid card (plugged into the left). The red 68008 socket is a real pain to deal with, and it took an unreasonable amount of force to get the RAM expansion into the QL. No doubt nearly 40 year old sockets are just not that flexible. I had thought the board was in, but I was getting a buzzing black screen, it only took a bit of reassuring and swapping in another 68008 to verify the machine was fine, and more pressing to get it to seat into the socket.
You can also spot the Hermes 2.20 co-processor upgrade to support 19,200 baud serial operations, along with the Minerva OS upgrade, and you can see the numerous RAM chips that had to get replaced to make the unit functional. With an appropriately upgraded system it can begin to feel like a real machine.
With enough luck my machine now has reliable memory, mass storage, and faster communications with the outside world. Everything you’d want in a modern computer! I now have a capable machine to do the one thing I always worry about when doing cross compiling, actual hardware verification.
SIxteen/Thirtytwo into EIght dreams…
The 68000 was used by Stanford University in it’s project based motherboards, that gave way to the 68010 based SUN-1/SUN-2 based machines, where other companys also used the 68000 line of processors in their Unix based machines. While the QL with it’s cost conscious 68008 was not going to run a ‘real unix’, it was however capable of running real programs. The big AT&T compilers (PCC!) can target the processor, just as other new and upcoming compilers, even GCC, although even 880kb of ram is probably not enough for running GCC natively. But going back to 1985 this leaves room for something more restricted to mini-computers, Hack.
While Hack had been ported to 16bit machines like the IBM-PC, or sixteen/32bit machines like the Amiga, I was surprised to find that it had not appeared on the QL. For someone like me that first meant getting a cross compiler in place to target the QL. Thankfully xXorAa had done a lot of the hard work in xtc68, qdos-libc, and Dilwyn Jones had saved the GCC patches by Richard Zidlicky, Jonathan Hudson, Thierry Godefroy and Dave Walker. With a working cross compiler, time to get hacking!
From the mini-computer to the 32bit home micro-computer
Doing my thing I put together a simple cross compiler so that I could begin work. With enough RAM, the QL is in the surprising league of many a minicomputer of the early 1980’s. It’s incredible to think of what a missed opportunity this is. When I had decided to try to get Hack-1.03 up and running, I went for the Unix version, bypassing the probably more apt PC port, as despite Hack-1.03 being free enough to be still part of OpenBSD, PC Hack however has a more restrictive license. I know it’s weird.
Using a VT library that gives the QL, something akin to ANSI.SYS functionality and another library to set environment variables (yes QDOS doesn’t have either…) a simple basic program to setup the screen type and point Hack where to find it’s files, and we are suddenly off to the races. I didn’t have to restrict or cut anything down, it’s running the same code that effectively would run on a VAX-11/780 mini-computer, or a SUN-2 workstation. It’s crazy how this machine didn’t fill the home 32bit gap that took Microsoft/Intel quite a few years to fill.
Another great program, COM, the 8080 CP/M emulator can also happily run on the QL, again with libvt, emulating a vt52 it opens up an entire ecosystem of software, much like it did on the Commodore-128. If it had been available perhaps it would have greatly helped out things for the platform as it languished.
While the QL was marred with it’s too early announcement/pre-orders, and terrible primary storage medium, and far too restrictive motherboard design, there was great potential in that tiny little machine. I’d like to have thought if I’d known about the QL, I’d have bought one, even though the 128kb is super restrictive, thanks to it’s processor it really was an incredible machine for 1984.
In the days of cheap arm machines, and who knows what the downstream effects of those will be, it feels like there was a much earlier missed window with the Sinclair QL.
I’d been working on some stuff this month, but things got a little sidelined. At the same time some fun progress had been made.
I’ve been messing with Hack, along with some progress on some ports that’d never been mainstreamed..
I’ll have some more added to that, along with a port of COM, the CP/M emulator to the QL, bridging that fatal application launch gap. Some nearly 40 years too late, but as they say, better late than never.
I’ve also been digging up some older projects and throwing them up on github, along with looking at the SLiRP updates from Debian, and 86Box, and thinking of doing an update for stuff like Cockatrice III. I’ve also started uploading more to archive.org preserving stuff like MacMiNT, that was nearly lost from my primary machine being offline. Of course, check out my favourites, maybe some of what I enjoy will be interesting for you.
So since i’ve been messing with 68k ql lately:
Maybe ill do a stream. Maybe I won’t I don’t know. Its been a rough year for me and my muse but we’ve made it this far.
So this started out as a weird thing that killed a day for me. I thought it was a little fun to look at but, ultimately I proved that I could extract files, but not from the requested image.
So let’s get into some more details, my failure, and well it’s been raised into another chance for some luck/fast knowledgeable hacker to get a payout to extract a single file.
As mentioned above the computer is the Texas Instruments S1500, the disk image was dumped on bitsavers years ago as s1505_cp3540/s1505_cp3540.dd.gz. As you may guess it’s a raw ‘dd’ of a disk.
Now looking at a few sources namely unix-ag the OS in question is TI System V, an AT&T SVR3.2 derivate. Running strings does reveal ‘SysVr3TCPID’ And this appears to be the Unix Version Banner:
(c)Copyright 1993 Hewlett-Packard Company, All Rights Reserved.
(c)Copyright 1986-1992 Texas Instruments Incorporated, All Rights Reserved.
(c)Copyright 1984-1988 AT&T, All Rights Reserved.
(c)Copyright 1979, 1980, 1983, 1985-1990 The Regents of the Univ. of California
(c)Copyright 1980, 1984, 1986 Unix System Laboratories, Inc.
(c)Copyright 1990 Motorola, Inc.
(c)Copyright 1989-1990 The Santa Cruz Operation. All Rights Reserved.
RESTRICTED RIGHTS LEGEND
Use, duplication, or disclosure by the U.S. Government is subject to
restrictions as set forth in sub-paragraph (c)(1)(ii) of the Rights in
Technical Data and Computer Software clause in DFARS 252.227-7013.
3000 Hanover Street
Palo Alto, CA 94304 U.S.A.
Rights for non-DOD U.S. Government Departments and Agencies are as set
forth in FAR 52.227-19(c)(1,2).
Along with further extraneous info like:
TI Sys V
Hewlett-Packard 9000 Series 1500
Fantastic. Well digging around you’ll eventually find that SYSV filesystems have a magic number, and it’s 0xfd187320
So a simple search through the raw filesystem reveals some:
And this fits the bill, as the next 32bit ‘word’ is the version, in this case 2 to indicate 1024k blocks ,and improvement added to SYSVr2. One thing is that the struct to read a super block is 512bytes (or is it always?), and the magic number is near the end, so from the above offsets, subtract 496 (decimal!) and you can get the start and sizes of each filesystem. Fantastic!
Speaking of SYSVr2, Do you know what is another SYSVr2? A/UX.
Shoebill was panned for not emulating the full Macintosh, rather it reads the kernel directly from the filesystem, and boots into it. That means Shoebill can read UFS/SYSV. Great start?
So I took the filesystem code from Shoebill, hacked it enough to let me build on Visual Studio, and point it to a raw filesystem and take a look. I put it here: filesystem.c
Now I’m impatient so it still needs a legit Apple A/UX virtual disk. Granted we don’t need it, but it made it easier to let the existing code fiddle with apple partitions, but when it comes time to read SYSV blocks, I closed the file handle and swapped things around. And that lead to this:
As you can see there is a LOT of zeros. However the magic & type align.
Meanwhile here is what an A/UX SYSV filesystem looks like. Notice far less zeros.
Additionally I was able to get another 68k based SYSV Unix disk, and yeah not all zeros. Also yes, using the Shoebill code it extracted files just fine.
However using my approach on the filesytem I always only get a directory with 2 enteries the ‘. ..’. I modified the source to just count inodes and write them to disk. And use inode 2 is just a tiny file. No doubt with all the zeros the disk is either very corrupted (backup superblocks?! where?! how?!) or the kernel implicitly knows these things, or finds them somewhere else.
I’ve been authorized to give a bounty of $200 USD to be able to extract arbitrary files from the 1505 disk image. I thought I’d give it a shot, but I don’t get how the super block aligns but the data doesn’t. Unless there is some other insane padding thing for a 1k superblock? The more I think about it, it’s probably likely as I know at some point I was skipping 3 blocks from an offset to get to a superblock, and 3 is just a weird number. 1 block header, 2 block superblock makes more sense.
Additionally this table may prove useful, especially for the ‘skip 3’ or pad to 1k:
Tape and disk utility is in progress...
26 partitions, 12-longword descriptors:
Name Start Length User Comments
1 * LABL vl 0 2 FFFF
2 * PTBL pt 2 3 FFFF
3 SAVE sb 5 3 FFFF
4 FMT fp 8 9 FFFF
5 TZON tz 17 296 FFFF
6 * unx1 lb 313 1024 0002 TI Sys V 3.3.2
7 * unx1 lb 313 1024 000A TI Sys V 3.3.2
8 * unx1 lb 313 1024 0013 TI Sys V 3.3.2
9 * unx1 lb 313 1024 0014 TI Sys V 3.3.2
10 unx2 lb 1337 1024 0002 TI Sys V 3.3.2
11 unx2 lb 1337 1024 000A TI Sys V 3.3.2
12 unx2 lb 1337 1024 0013 TI Sys V 3.3.2
13 unx2 lb 1337 1024 0014 TI Sys V 3.3.2
14 unx3 lb 2361 1024 0002 TI Sys V 3.3.2
15 unx3 lb 2361 1024 000A TI Sys V 3.3.2
16 unx3 lb 2361 1024 0013 TI Sys V 3.3.2
17 unx3 lb 2361 1024 0014 TI Sys V 3.3.2
18 * cfg1 cb 3385 17 FFFF TI Sys V 3.3.2
19 cfg2 cb 3402 17 FFFF TI Sys V 3.3.2
20 cfg3 cb 3419 17 FFFF TI Sys V 3.3.2
21 * root fb 3436 12288 FC02 TI Sys V 3.3.2
22 usr fb 15724 32768 FC02 TI Sys V 3.3.2
23 jdis an 48492 2 FFFF multi-volume file system anchor
24 pipe fb 48494 1024 FC02 pipe file system partition
25 * swap pb 49518 32768 0002
26 prt1 fb 82286 448972 FC02 part of jdis multi-volume
Did you know there is almost nothing left to document that this poor machine even existed?
Actually I held onto this, as I wanted to do something crazy for that Marchintosh thing but life got in the way it fell by the wayside, and well now it’s September, and I already have a Qemu instance running A/UX so my ‘at best’ hope of Basilisk II with MMU emulation is all but moot.

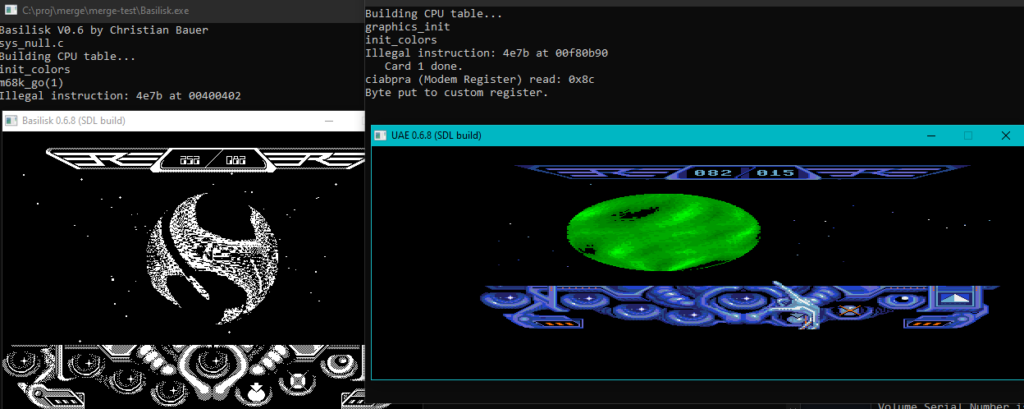

While it may look like 2 very old emulators, which they are, the interesting thing here is that this old version of Basilisk that only has Macintosh Classic emulation is using the 68000 emulation core from UAE 0.6.8. It took a lot of downloading stuff, a lot of other nonsense, but I eventually found it, and was able to diff around to find the changes made were rather inconsequential, there by letting me rebuild UAE back on top of Basilisk.
My plan had been to either use far newer UAE cpu core, say from Previous as it has working MMU support, or Musashi.
I was building hard coded for TDM GCC 5.1.0 on MinGW. It doesn’t matter anymore but I threw it up on github since that is where all the cool kids are.
This is beyond super cool! Video has always been something of the realm of ‘high end’ machines, back when QuickTime became a thing it was lauded at running in a postage stamp sized window with absolutely incredible artifacting. And that was running with a Quadra (68040) back in the day, the transition from 68000 to PowerPC really helped with video on the desktop with much faster clocks and better caching.
The idea of video on any of the compact black & white Macs, even the ultra high end SE/30 68030 based Mac seemed something out of fantasy. But thanks to modern processors, massive storage and the ability to front process the video, it is now possible to do playback on a B&W mac!
This is some super cool ‘impossible’ tech for the low end macs!
This is nothing short of incredible!
Of course the ‘downside’ is there is no audio.. And it’s directly blitting to the 512×342 B&W display so if you are not running on a 1 bit original display it’s not going to work or just blast seemingly junk to the screen.
Maybe if big 80’s media wasn’t so slow, or massive SCSI disks didn’t cost as much as a car we could have been enjoying an almost Brazilian future of black and white movies on tiny CRT’s.
Well this is a ‘small’ update, but with a big change, the audio is for the most part working great now thanks to this fix from rakslice. Namely changing SDL to MSB:
desired.format = AUDIO_S16MSB;
And another MinGW tweak, and yeah it’s GREAT!
Even stuff like RealAudio work now! I’ll add some self hosted video later as it’d just get struck from anything public.
Also since the RealAudio player is timebombed for installing, I added some lazy offset to remove however many billions of ticks from the clock letting you jump in some random point in the past when it won’t care.
I guess the final if any justification for a bump would be rebuilding with GCC 8.1.0 on MinGW. I somehow butchered the slirp.h to make it too MinGW’ish so it won’t clean build on Linux or OS X, but I have re-butchered a private branch and it works.. I just need to merge and clean but I’m not in the mood at the moment.
I could be crazy but it “feels” faster.
At any rate, I found that System 7 is more agreeable to running Return to Zork, just use some toast image mounter from within MacOS, and it’ll run!
Also there is some ULONGLONG weirdness going on, so I had to backout Peter’s changes for larger disks. No doubt some standard type thing change in GCC 8.
Again super thanks to shadyjesse for finding and fixing the larger issues, and philpem for his great emulator, freebee!
I have to say, having never played with an AT&T Unix PC, it’s kind neat with this windowing non X11 UI. Although even in emulation it’s incredibly slow. But such was the Unix microprocessor revolution of the era, it’s crazy to think the mighty SUN-2 is also on the same level of performance, although SUN would at least go the way of the 68020 before giving up on the 68k for SPARC.
Even though the 68000 lacked the ability to recover from bus faults, allowing a better path to UNIX with the 68010, OEM’s still brought their own MMU technology to flesh it out, leading to divergent systems. Not that it mattered all that much for AT&T as they started to establish themselves as the new defacto go to UNIX vendor they quickly abandoned the market leaving the Unix PC, and 3B2’s to die off. While so many like to think that the ‘Unix’ business is booming, it really only boomed once AT&T exited the market until Linux had started to gain enough mindshare post 1.0… Which also included 68000 support, although aimed for the the stronger 68030/68040’s.
Anyways I’m sure you didn’t come here for my ramblings about the 68000 instead you want an easy to run package to click and GO!
There are two executables, for normies, tourists, and people only wanting to witness the fun it doesn’t matter which one you use. For anyone wanting to install the 3B1 Unix, you’ll want “freebee-10sec-O2.exe”. Since the 3B1 uses a non standard format, if you want to use FAT 360kb disks from a PC emulator then you’ll need “freebee-9sec-O2.exe”. Isn’t compatibility great?
However, with the latest updates, from github, adding in a prior botched attempt, and some messing around, and finally, I got it to ping at first, then it was a matter of where to place the ‘slirp tick’. I first though putting it on the interface poll was a good spot, but for some reason the machine causes a deadlock/stall on boot before the PROM can even initialize. I’m not sure why. Searching further I found a good timer portion and injected the code. And sure enough I was greeted with the login banner:
I’ve been able to paste in about 100kb of a uuencoded tar file, and it didn’t lock the VM, and I was able to uudecode it, and actually build the source (Infotaskforce ’87 if anyone cares). So I’m at the point I think it’s stable enough to shove into the world, although I guess until I revisit it again.
The Makefile is so nice it chains in c files from sub-directories to build, which unfortunately it doesn’t work so well with the latest Musashi. Like a bull charging into the China shop I just smashed together a build script, and got a working exe:
And it’s so nice to see it actually boot up.
Things like the C compiler still break, apparently the 6100 had an actual physical memory buffer for IPC? It’s all so confusing.
Not that mine is all that great but my crap fork is here:
